​KOH-I-NOOR MACHINERY

Extrusion blow moulding machine producer since 1992

Machines

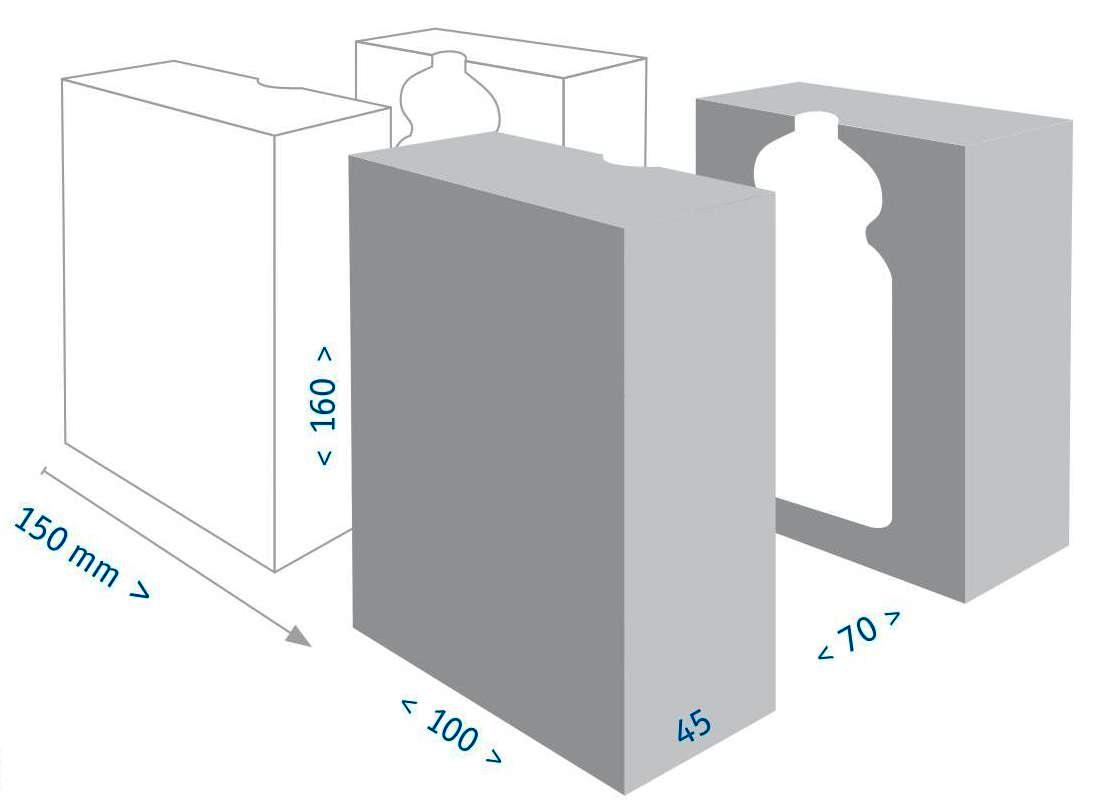

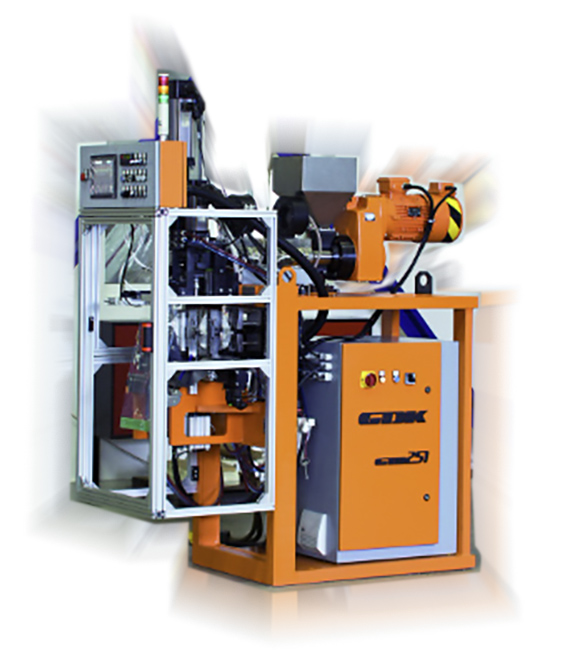

GM 250

GM 250

General information Single station machine Double station machine Extruder information Single station machine Double station machine
Dimensions (Width/Length/Height) 900 / 1 700 / 2 100 mm 1 400 / 2 200 / 2 100 mm Screw diameter 25 mm 32 mm
Weight 800 kg 1 500 kg Extruder drive output 4 kW 7,5 kW
      Extruder output HD-PE 7 kg/h 14 kg/h
Clamping force Product volumes Shuttle stroke
12 kN 0 - 0,35 l 150 mm
Standard center distance
2 Cavities
50 mm
Mechanism Drive
  Hybrid (.X) Pneumatic (.P)
Mould closing pneumatic pneumatic
Carriage movement electric pneumatic
Blow pin movement electric pneumatic
Parison cutter pneumatic pneumatic
Deflashing pneumatic pneumatic
Extruder bobbing pneumatic pneumatic
Wall thickness control electric electric

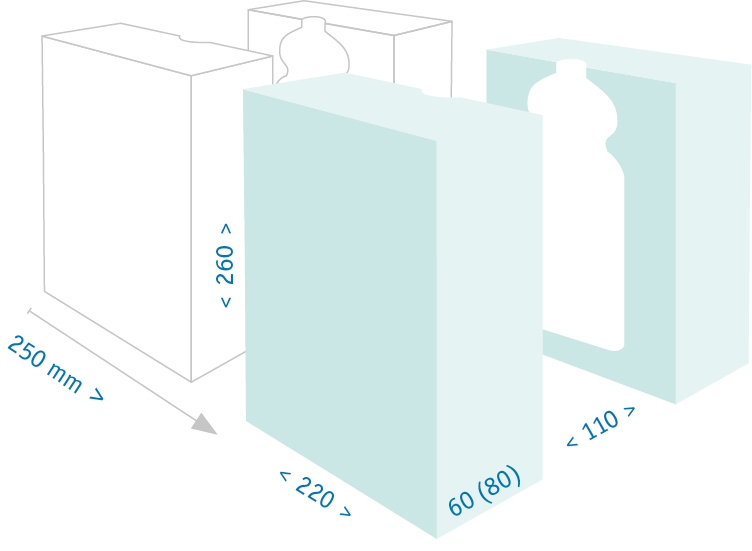

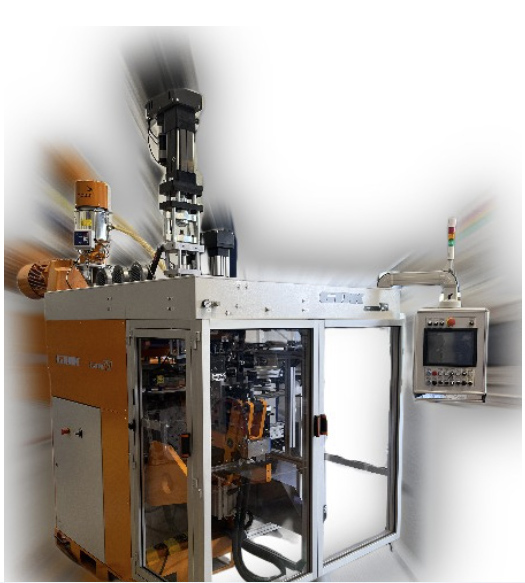

GM 750

GM 750GM 750

General information Single station machine Double station machine Extruder information

Single station machine

 Double station machine
Dimensions (Width/Length/Height) 1 200 / 2 400 / 2 400 mm 2 000 / 2 700 / 2 400 mm Screw diameter 32 mm 40 mm
Weight 1 000 kg 1 700 kg Extruder drive output 7,5 kW 11 kW
      Extruder output HD-PE 14 kg/h 23 kg/h
Clamping force Product volumes Shuttle stroke
30 kN 0 - 1,5 l 250 mm
Standard center distance
2 Cavities 3 Cavities
90 mm 50 mm
Mechanism Drive
  Electric (.E) Hybrid (.X) Pneumatic (.P)
Mould closing electric pneumatic pneumatic
Carriage movement electric electric pneumatic
Blow pin movement electric electric pneumatic
Parison cutter pneumatic pneumatic pneumatic
Deflashing pneumatic pneumatic pneumatic
Extruder bobbing pneumatic pneumatic pneumatic
Wall thickness control electric electric electric

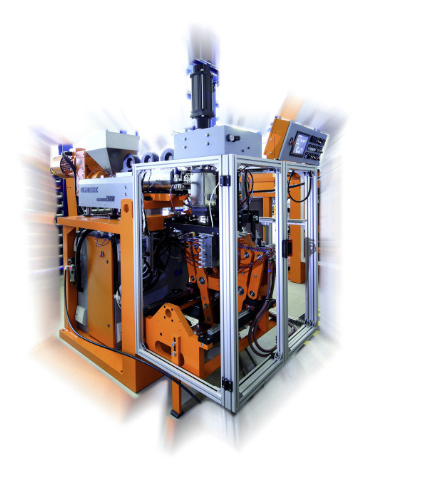

GM 2000

GM 2000GM 2000

General information Single station machine Double station machine Extruder information Single station machine Double station machine
Dimensions (Width/Length/Height) 1 500 / 3 000 / 2 500 mm 2 500 / 3 800 / 2 500 mm Screw diameter 45 mm 60 mm
Weight 2 700 kg 4 000 kg Extruder drive output 15 kW 22 kW
      Extruder output HD-PE 37 kg/h 70 kg/h
Clamping force Product volumes Shuttle stroke
60 kN 0,3 - 3 l GM 2000 - 300 mm
    GM 2000 W - 350 mm
Standard center distance
  2 Cavities 3 Cavities 4 Cavities
GM 2000 100 mm 70 mm -
GM 2000 W 130 mm 100 mm 70 mm
Mechanism Drive
  Electric (.E) Pneumatic (.P)
Mould closing electric pneumatic
Carriage movement electric pneumatic
Blow pin movement electric pneumatic
Parison cutter pneumatic pneumatic
Deflashing pneumatic pneumatic
Extruder bobbing pneumatic pneumatic
Wall thickness control electric electric

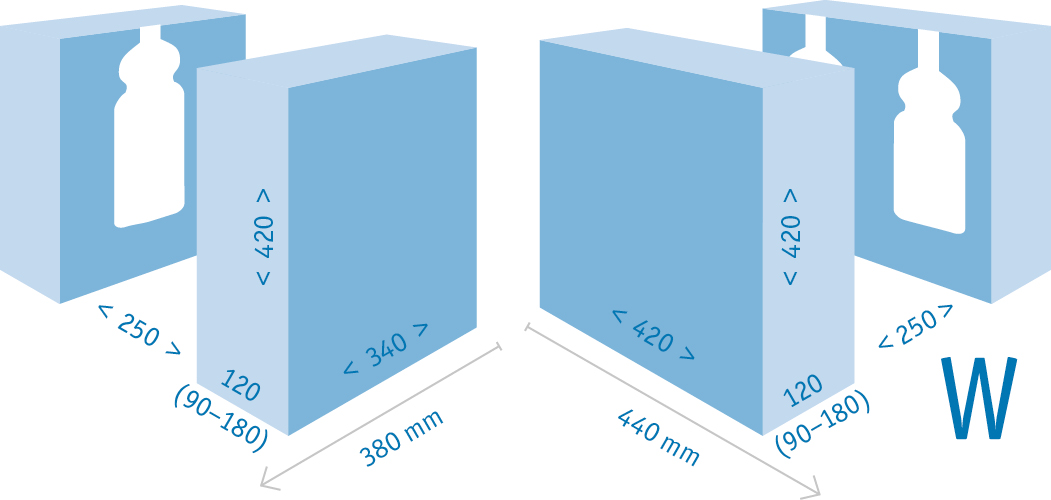

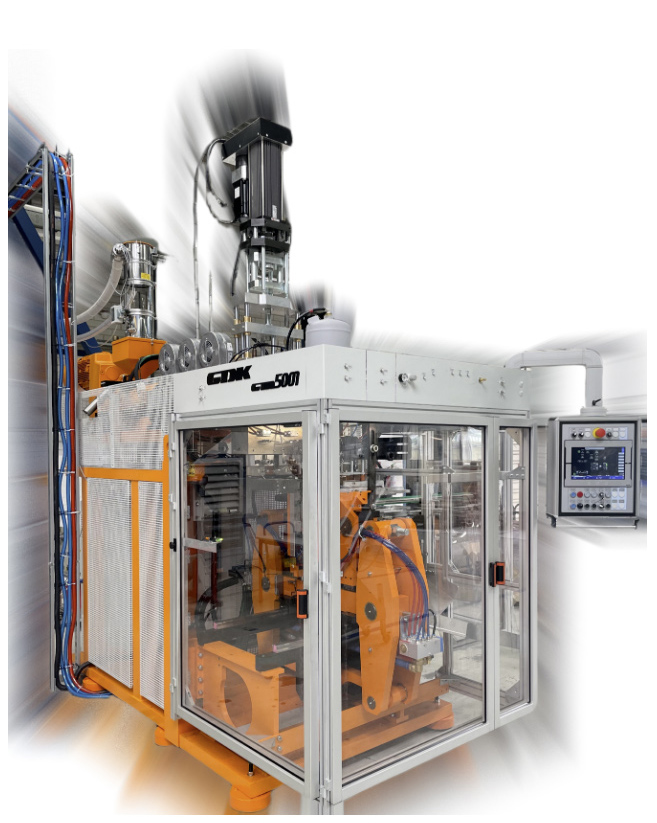

GM 5000

GM 5000GM 5000

General information Single station machine Double station machine Extruder information Single station machine Double station machine
Dimensions (Width/Length/Height) 2 000 / 4 000 / 3 200 mm 3 000 / 4 600 / 3 200 mm Screw diameter 60 mm 80 mm
Weight 4 600 kg 7 000 kg Extruder drive output 22 kW 55 kW
      Extruder output HD-PE 70 kg/h 140 kg/h
Clamping force Product volumes Shuttle stroke
130 kN 0,2 - 10 l GM 5000 - 380 mm
     GM 5000 W - 440 mm
Standard center distance
  2 Cavities 3 Cavities 4 Cavities 5 Cavities
GM 5000 130 mm 110 mm 70 mm -
GM 5000 W 180 mm 125 mm 100 mm 70 mm
Mechanism Drive
  Electric (.E)
Mould closing electric
Carriage movement electric
Blow pin movement electric
Parison cutter pneumatic
Deflashing pneumatic
Extruder bobbing pneumatic
Wall thickness control electric

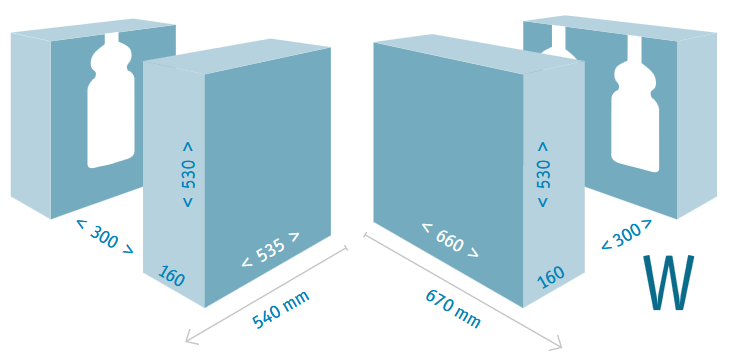

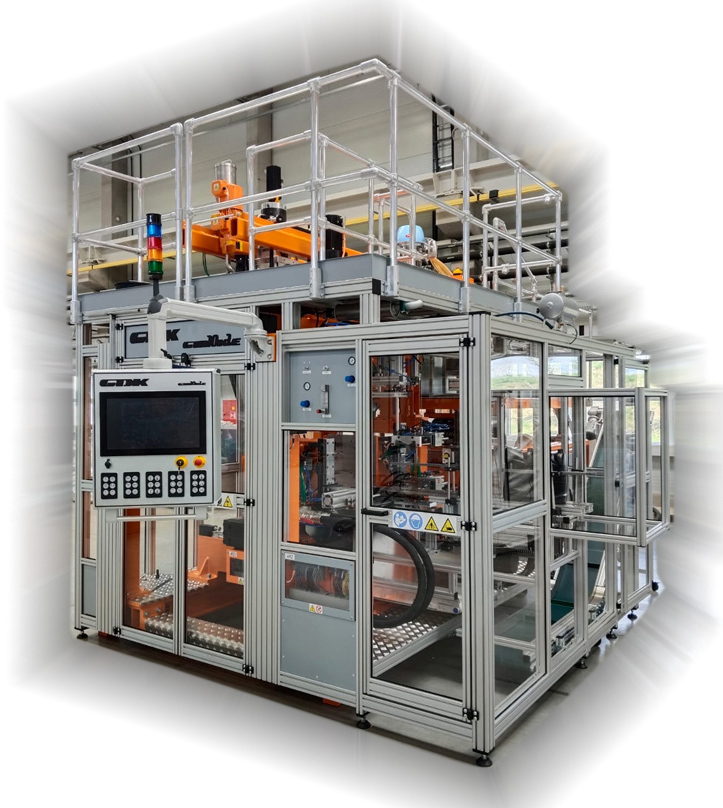

GM 10k

GM 10kGM 10k

General information Single station machine Double station machine Extruder information Single station machine Double station machine
Dimensions (Width/Length/Height) 2 600 / 5 800 / 2 940 mm 3 500 / 6 000 / 2 940 mm Screw diameter 80 mm 100 mm
Weight 14 000 kg 17 000 kg Extruder drive output 55 kW 115 kW
      Extruder output HD-PE 140 kg/h 270 kg/h
Clamping force Product volumes Shuttle stroke
170 kN 0,4 - 20 l GM 10k.E - 540 mm
    GM 10k.EW - 670 mm
Standard center distance
  2 Cavities 3 Cavities 4 Cavities 5 Cavities 6 Cavities 7 Cavities 8 Cavities
GM 10k.E 250 mm 150 mm 115 mm 90 mm 75 mm - -
GM 10k.EW 300 mm 200 mm 150 mm 120 mm 100 mm 85 mm 75 mm
Mechanism Drive
Mould closing electric
Carriage movement electric
Blow pin movement electric
Parison cutter pneumatic
Deflashing pneumatic
Extruder bobbing electric
Wall thickness control electric

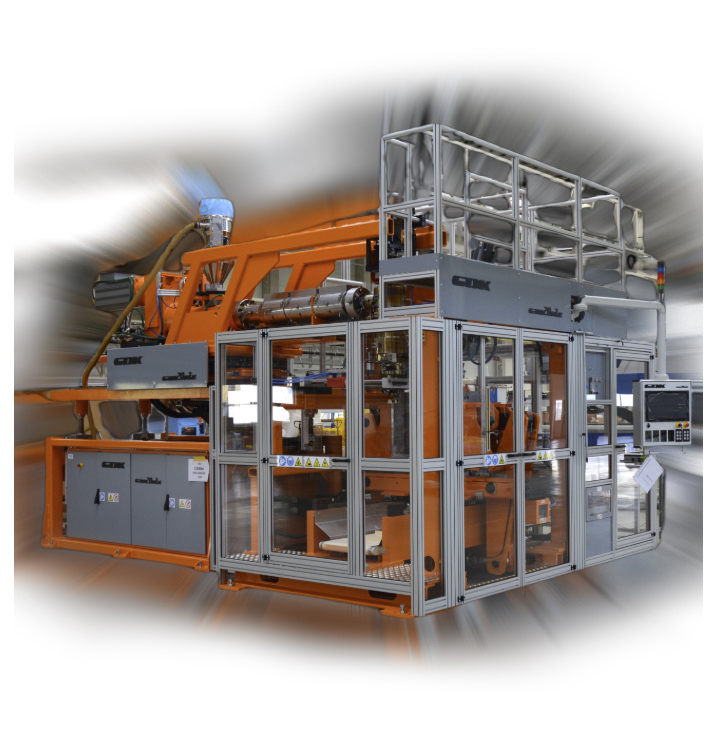

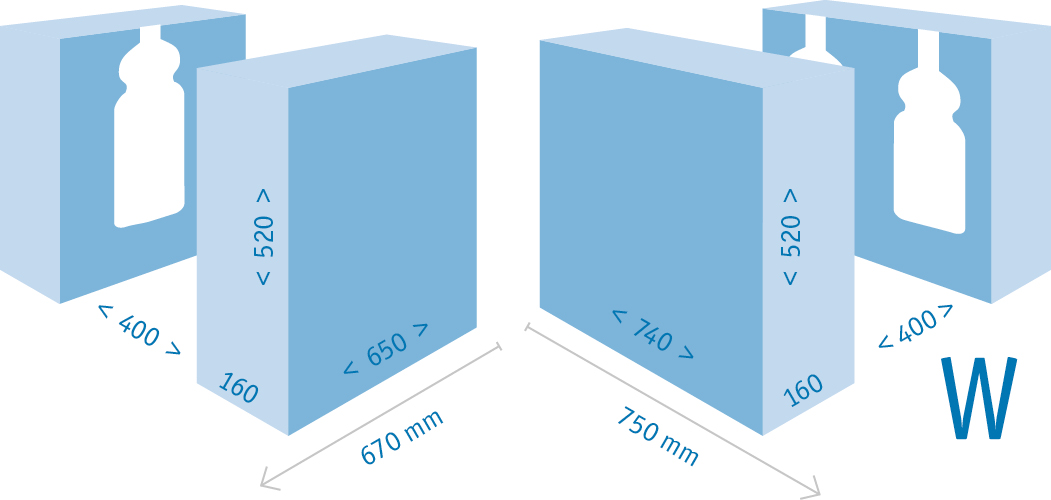

GM 20k

GM 20kGM 20k

General information Single station machine Double station machine Extruder information Single station machine Double station machine
Dimensions (Width/Length/Height) 3 200 / 5 400 / 3 350 mm 4 350 / 6 000 / 3 350 mm Screw diameter 80 mm 100 mm
Weight 16 300 kg 19 200 kg Extruder drive output 55 kW 115 kW
      Extruder output HD-PE 140 kg/h 270 kg/h
Clamping force Product volumes Shuttle stroke
200 kN 0,4 - 20 l GM 20k.E - 670 mm
    GM 20k.EW - 750 mm
Standard center distance
  2 Cavities 3 Cavities 4 Cavities 5 Cavities 6 Cavities 7 Cavities 8 Cavities
GM 20k.E 300 mm 200 mm 150 mm 120 mm 100 mm - -
GM 20k.EW 350 mm 230 mm 170 mm 135 mm 115 mm 95 mm 85 mm
Mechanism Drive
Mould closing electric
Carriage movement electric
Blow pin movement electric
Parison cutter pneumatic
Deflashing pneumatic
Extruder bobbing electric
Wall thickness control electric

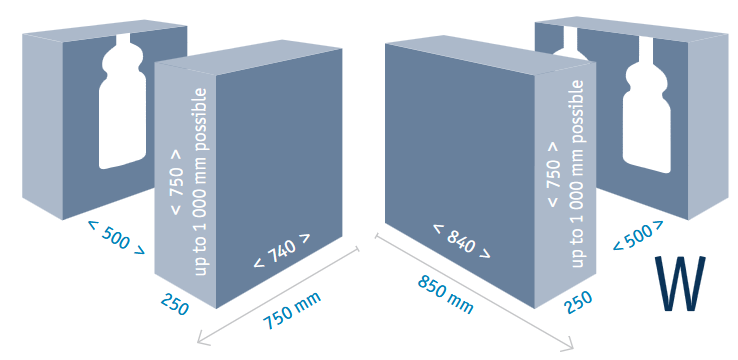

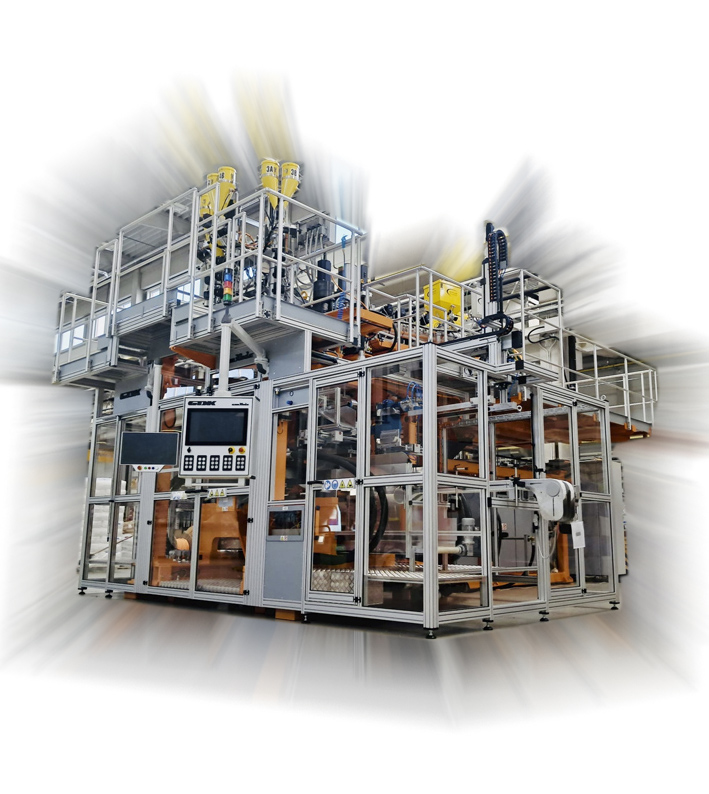

GM 30k

GM 30kGM 30k

General information Single station machine Double station machine Extruder information Single station machine Double station machine
Dimensions (Width/Length/Height) 4 350 / 6 800 / 3 700 mm 4 450 / 6 800 / 3 700 mm Screw diameter 100 mm 120 mm
Weight 19 500 kg 23 000 kg Extruder drive output 115 kW 120 kW
      Extruder output HD-PE 270 kg/h 380 kg/h
Clamping force Product volumes Shuttle stroke
200 kN 0,4 - 20 l GM 30k.E - 670 mm
    GM 30k.EW - 750 mm
Standard center distance
  2 Cavities 3 Cavities 4 Cavities 5 Cavities 6 Cavities 7 Cavities 8 Cavities
GM 30k.E 300 mm 200 mm 150 mm 120 mm 100 mm - -
GM 30k.EW 370 mm 300 mm 190 mm 150 mm 125 mm 100 mm 90 mm
Mechanism Drive
Mould closing electric
Carriage movement electric
Blow pin movement electric
Parison cutter pneumatic
Deflashing pneumatic
Extruder bobbing electric
Wall thickness control electric
